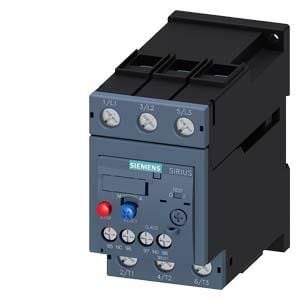

Siemens 3RU2136-4GB1 Termik Röle 36-45A Sirius

product brand name SIRIUS

product designation thermal overload relay

product type designation 3RU2

General technical data

size of overload relay S2

size of contactor can be combined company-specific S2

power loss [W] for rated value of the current at AC in hot

operating state

15.6 W

● per pole 5.2 W

insulation voltage with degree of pollution 3 at AC rated value 690 V

surge voltage resistance rated value 6 kV

maximum permissible voltage for protective separation

● in networks with ungrounded star point between auxiliary

and auxiliary circuit

415 V

● in networks with grounded star point between auxiliary

and auxiliary circuit

415 V

● in networks with ungrounded star point between main and

auxiliary circuit

690 V

● in networks with grounded star point between main and

auxiliary circuit

690 V

shock resistance according to IEC 60068-2-27 8g / 11 ms

recovery time after overload trip

● with automatic reset typical 10 min

● with remote-reset 10 min

● with manual reset 10 min

reference code according to IEC 81346-2 F

Substance Prohibitance (Date) 10/15/2014

SVHC substance name Lead - 7439-92-1

Weight 0.483 kg
