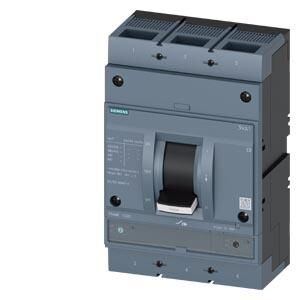

Siemens 3VA1580-5EF32-0AA0 3x800A 55kA Termik Manyetik Şalter

product brand name SENTRON

product designation Molded case circuit breaker

design of the product Line protection

design of the overcurrent release TM240

protection function of the overcurrent release LI

number of poles 3

General technical data

insulation voltage / rated value 800 V

operating voltage / at DC / rated value 750 V

operating voltage / at AC / rated value 690 V

power loss [W] / maximum 240 W

power loss [W] / for rated value of the current / at AC / in hot

operating state / per pole

80 W

mechanical service life (operating cycles) / typical 10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V 4 600

electrical endurance (operating cycles) / at AC-1 / at 690 V 3 200

product feature / for neutral conductors / upgradable/retrofittable

/ short-circuit and overload proof

No

product function

● communication function No

● other measurement function No

Net Weight 13.056 kg

Current

operational current

● at 40 °C 800 A

● at 45 °C 800 A

● at 50 °C 800 A

● at 55 °C 780 A

● at 60 °C 761 A

● at 65 °C 741 A

● at 70 °C 722 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breaker M

maximum short-circuit current breaking capacity (Icu)

● at 240 V 85 kA

● at 415 V 55 kA

● at 440 V 55 kA

● at 500 V 36 kA
