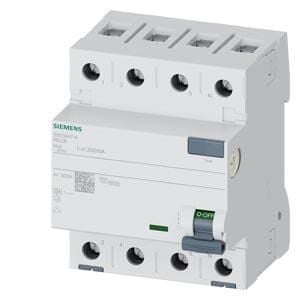

Siemens 5SV3647-6 4x80A 300mA Kaçak Akım Koruma Rölesi TİP A

product brand name SENTRON

product designation RCCB

design of the product Instantaneous

product type designation 5SV3

General technical data

number of poles 4

size of installation devices according to DIN 43880 1

mechanical service life (operating cycles) typical 10 000

short-circuit current of series fuse maximum permissible 100 A

short-circuit current rating 10 kA

switching function short-term delayed No

overvoltage category III

insulation voltage (Ui) rated value 2 000 V

tripping fault current rated value 300 mA

let-through current permissible 7 100 A

I2t value permissible 110 000 A²·s

Supply voltage

supply voltage for testing equipment minimum 100 V

value range of the supply voltage frequency 50 Hz

value range of the operating frequency 50 Hz

value range of the supply voltage at AC 230/400 V

Protection class

protection class IP IP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current

● according to IEC 61008-1 rated value 0.8 kA

grid spacing 60 mm

Dissipation

power loss [W]

● for rated value of the current at AC in hot operating state

per pole

4.1 W

● maximum 12.3 W

Product details

product feature silicon-free Yes

product extension installable supplementary devices Yes

Connections

connectable conductor cross-section solid

● minimum 0.75 mm²
