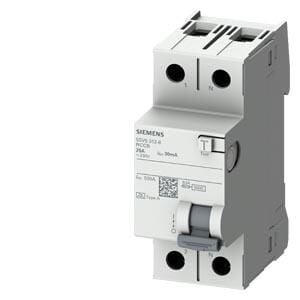

Siemens 5SV5612-6 2X25A 300mA A Tİpi Kaçak Akım Koruma Rölesi

product brand name SENTRON

product designation RCCB

design of the product Instantaneous

product type designation 5SV5

General technical data

number of poles 2

size of installation devices according to DIN 43880 1

mechanical service life (operating cycles) typical 4 000

short-circuit current of series fuse maximum permissible 63 A

short-circuit current rating 6 kA

switching function short-term delayed No

overvoltage category III

insulation voltage (Ui) rated value 2 000 V

tripping fault current rated value 300 mA

let-through current permissible 5 200 A

I2t value permissible 58 000 A²·s

Supply voltage

supply voltage for testing equipment minimum 100 V

value range of the supply voltage frequency 50 Hz

value range of the operating frequency 50 Hz

value range of the supply voltage at AC 230/400 V

Protection class

protection class IP IP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current

● according to IEC 61008-1 rated value 0.5 kA

grid spacing 60 mm

Dissipation

power loss [W]

● for rated value of the current at AC in hot operating state

per pole

1 W

● maximum 2 W

Product details

product feature silicon-free Yes

product extension installable supplementary devices No
