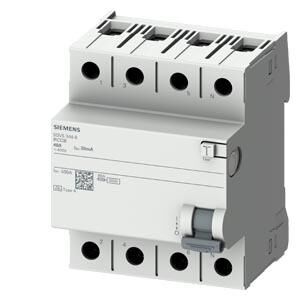

Siemens 5SV5642-6 4x25A 300mA A Tipi Kaçak Akım Koruma Rölesi

product brand name SENTRON

product designation Residual current operated circuit breaker

design of the product Instantaneous

product type designation 5SV5

General technical data

number of poles 4

size of installation devices according to DIN 43880 1

mechanical service life (operating cycles) typical 4 000

short-circuit current of series fuse maximum permissible 80 A

short-circuit current rating 6 kA

switching function short-term delayed No

overvoltage category III

insulation voltage (Ui) rated value 2 000 V

tripping fault current rated value 300 mA

let-through current permissible 5 200 A

I2t value permissible 58 000 A²·s

Supply voltage

supply voltage for testing equipment minimum 100 V

value range of the supply voltage frequency 50 Hz

value range of the operating frequency 50 Hz

value range of the supply voltage at AC 230/400 V

Protection class

protection class IP IP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current

● according to IEC 61008-1 rated value 0.8 kA

grid spacing 60 mm

Dissipation

power loss [W]

● for rated value of the current at AC in hot operating state

per pole

1 W

● maximum 3 W

Product details

product feature silicon-free Yes

product extension installable supplementary devices No

Connections

connectable conductor cross-section solid

● minimum 0.75 mm²

5SV56426
